Made with Nova
-
LED matrix snake game
In this tutorial we are going to create the classic snake game using Nova. This project lets you play the snake game by controlling an LED "snake" on the matrix...
LED matrix snake game
In this tutorial we are going to create the classic snake game using Nova. This project lets you play the snake game by controlling an LED "snake" on the matrix...

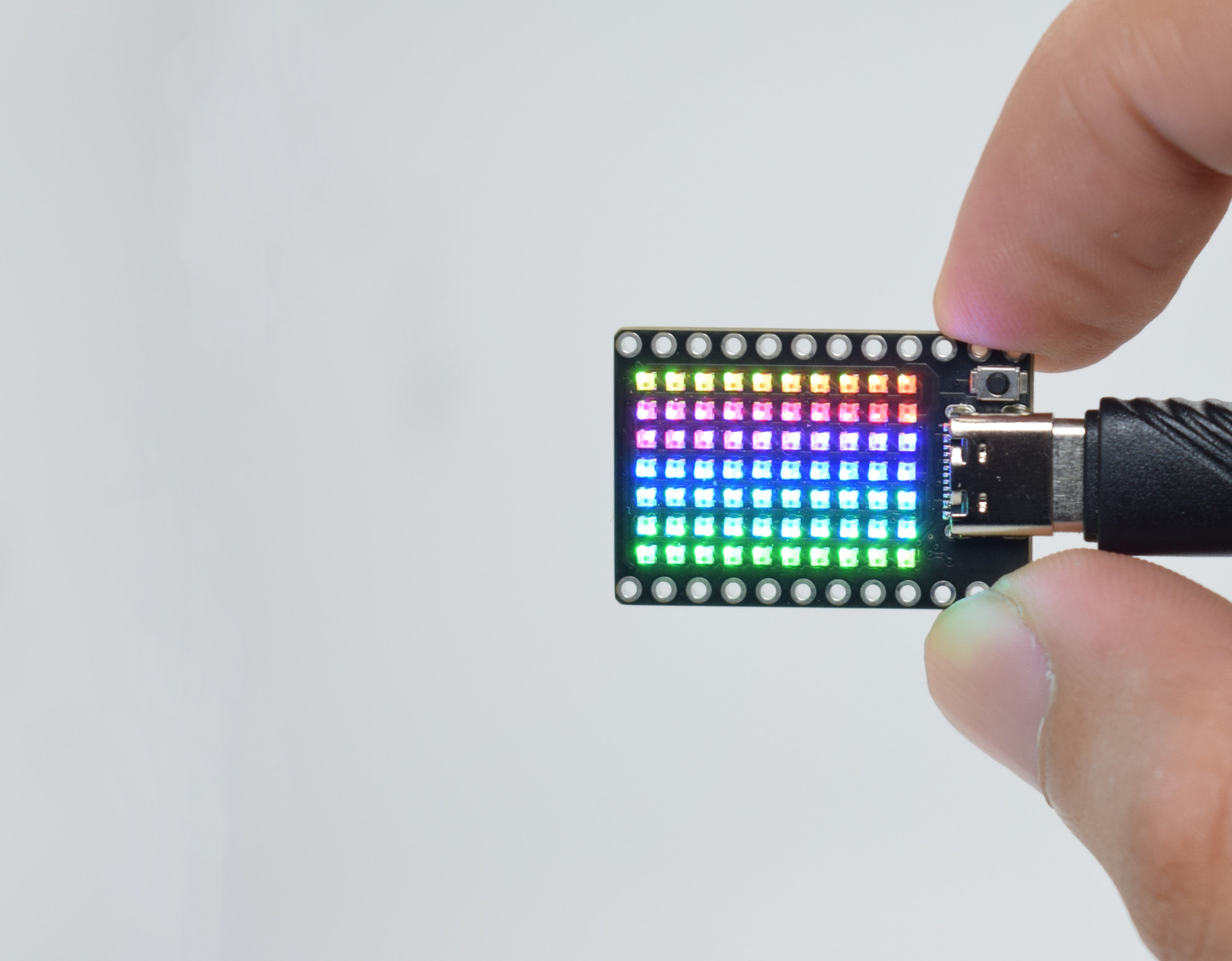

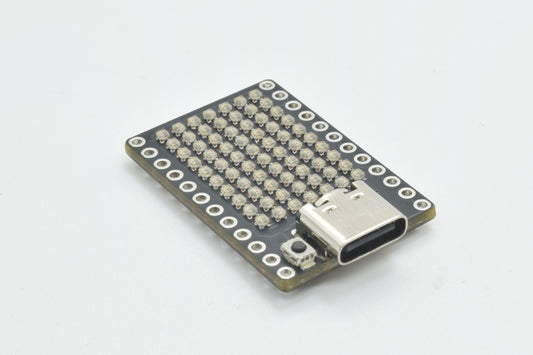

NOVA: Introduction and Features
Fully addressable on-board LED matrix
Nova has an integrated 7x10 LED matrix. Coupled with a powerful dual-core ARM Cortex M0+ processor.
Very capable in a small package
Nova is a 1.25" by 0.8" development board, that is capable of creating whatever you want, with its 24 GPIOs and 70 on-board LEDs.
Super quick processing
Nova is powered by the Raspberry Pi RP2040 with dual ARM Cortex M0+ cores running up to 133 MHz. Giving you the ability to created whatever you want without limitations.
Technical Details
| Microcontroller: | Raspberry Pi RP2040 with dual ARM Cortex M0+ cores running up to 133 MHz |
| Memory: | 264KB of SRAM, with support for external flash 16M-bit (2M-byte) |
| 7x10 LED Matrix: | Integrated with 70 RGB LEDs (addressable WS2812) |
| GPIO: | Accessible for various I/O purposes |
| Power Input: | Via USB Type-C or external power |
| Connectivity: | USB and various standard GPIO pins for communication protocols (I2C, SPI, UART) |
| Open-source: | Fully customizable hardware with publicly available schematics and examples |
Pinouts
